Authentication

Every request to the AI API except the model catalog must include a bearer token in the Authorization header:

Authorization: Bearer <token>

The model catalog (GET /v1/models and GET /v1/models/{owner}/{model}/schema) is public and requires no authentication.

API keys are the credential for every developer integration, including MCP clients. You create and revoke them in the WP Engine User Portal.

Key types

There are two types of key, and the difference is whether the key carries a person:

Type	Prefix	Acts as	Can run WordPress abilities	Use for
User	wpe_pat_	The person who created it	Yes	MCP clients, and anything acting for a person
Account	wpe_	Nobody	No	Service-to-service calls and automation

The prefix is the quickest way to tell which kind you pasted into a client.

Tip

The API and its error messages call these personal and project keys.

A user key is visible only to the person who created it. Nobody else on the account can see it, edit it, or revoke it — to them it does not exist. Take that into account before a user key becomes load-bearing in shared infrastructure.

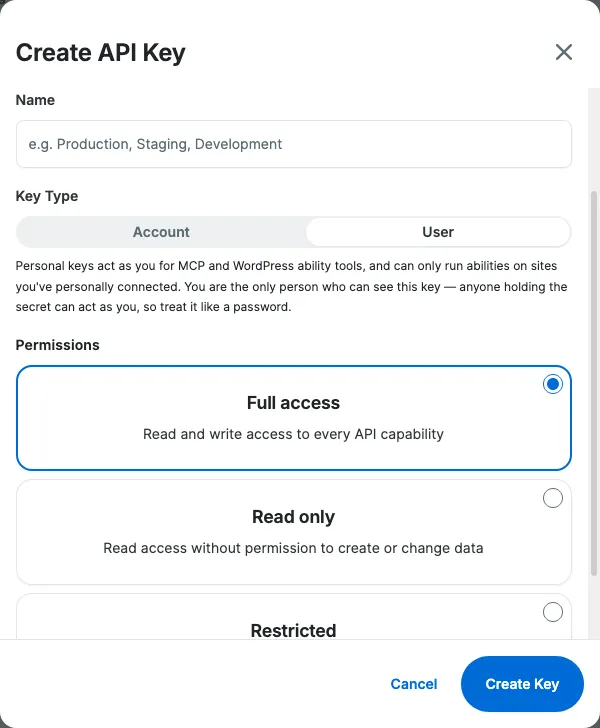

Creating a key

1. In the WP Engine User Portal, go to AI → Gateways & API → API Keys.
2. Select Create API Key.
3. Enter a Name that tells you where the key is used, such as My Company Production.
4. Choose the Key Type — Account or User.
5. Choose the Permissions:
   • Full access — write on every scope.
   • Read only — read on every scope.
   • Restricted — set Chat, Image, Speech, Transcribe, and MCP individually to Write, Read, or None.
6. Select Create Key, then copy the secret. It is displayed once.

Keep it secret, keep it safe!

Keys are only displayed once, save it somewhere safe before closing the dialog.

This key is sensitive, keep it out of source control, client-side code, logs, and screenshots. If one does leak, you suspect it could have leaked, or you simply lose it, replace it.

Scopes

Every endpoint requires a scope at a level — read or write, where write also grants read. A key that does not hold the level its endpoint requires returns 403.

A key’s scopes come from the permissions you picked when you created it. Full access and Read only cover every scope in the table below. Restricted lets you set chat, image, speech, transcribe, and mcp individually; the remaining scopes are none on a restricted key, so pick Full access or Read only if you need the knowledge base, agents, or sessions endpoints.

Scope	Covers
chat	POST /v1/chat/completions, POST /v1/messages, POST /v1/messages/count_tokens, POST /v1/content/summarize, POST /v1/content/suggest-taxonomy. All need write.
image	POST /v1/images/generations and POST /v1/images/alt-text. Both need write.
speech	POST /v1/audio/speech. Needs write.
transcribe	POST /v1/audio/transcriptions. Needs write.
collections	Knowledge base collections under /v1/kb/collections, and /v1/sites/{site_identifier}. read to get or list, write to create, update, or delete.
documents	Documents under /v1/kb/collections/{id}/documents. read to fetch one, write to index or delete.
search	POST /v1/kb/collections/{id}/search. Needs read.
agents	/v1/agents and /v1/sessions. read to get or list, write to create, update, archive, or delete.
session_events	Session events and response feedback under /v1/sessions/{session_id}. Accepted in place of agents on those routes only.
mcp	/v1/mcp. Needs write. Grant it to a user key before connecting an MCP client.

Tip

Most endpoints require a single scope. The session event and response feedback routes are the exception — they accept either agents or session_events.

Keys and MCP

An MCP client needs a key with mcp at write. There is no read tier — a key holding mcp: read authenticates and then fails every tool call with a 403.

Running a WordPress ability needs a user key on top of that. An ability runs as somebody, and the server checks that that person has connected their WordPress account to the target site. An account key carries nobody for the ability to run as. So on a user key:

• run_site_ability checks that they have connected their WordPress account to the target site
• wp_connection_status in list_account_sites reports whether they are connected, site by site
• Audit logs name them as the acting user for every ability run

Creating a user key does not share your WordPress account connections with whoever holds the key later; the check is against the connection, not the key.

An account key still works for ping, list_account_sites, and the knowledge base tools. It can never execute an ability.

To set a client up, see Connect Claude Code or Connect Claude Desktop. To poke at the server directly, MCP Inspector takes the same header:

npx @modelcontextprotocol/inspector \
  --cli https://api.ai.wpengine.com/v1/mcp \
  --transport http \
  --header "Authorization: Bearer wpe_pat_abc123..." \
  --method tools/list

When a key is rejected

A rejected key fails at the HTTP layer, before the request reaches the endpoint it was aimed at. Both responses below use the gateway’s standard error envelope — Errors documents its fields. What follows is what each one means for a key.

401: the key was not accepted

HTTP/1.1 401 Unauthorized
WWW-Authenticate: Bearer realm="ai-services"

{
  "error": {
    "message": "invalid or revoked API key",
    "type": "authentication_error",
    "code": 401,
    "request_id": "77e3a50c925779840eb98bb29d2a6c0d"
  }
}

Tip

A 401 does not tell you which thing went wrong, and that is deliberate: a mistyped key, a key from another account, and a key you revoked last week all answer identically, so probing the endpoint reveals nothing about which keys exist. Check the key’s prefix under API Keys in the User Portal, and that it hasn’t been revoked; if you can’t account for it, rotate it.

403: the key is missing a scope

HTTP/1.1 403 Forbidden

{
  "error": {
    "message": "API key does not have 'write' permission for scope 'mcp' (granted: 'none').",
    "type": "permission_error",
    "code": 403,
    "request_id": "3c1f9a7e05b24d6c8e2a41f0b9d7e615"
  }
}

Unlike a 401, this one names the scope and the level you were granted. Edit the key’s permissions under API Keys in the User Portal to grant the scope at the level the table above lists, or use Full access while you’re testing.

Rotating a key

Keys do not expire on their own, and there is no rotation endpoint. Rotating is creating a replacement and revoking the original:

1. Create a new key with the same type and permissions.
2. Deploy it to your application, or update your MCP client configuration.
3. Confirm the new key works.
4. Revoke the old key.

The two keys work side by side for as long as you need, so there is no window where neither authenticates. Nothing forces a rotation, which is why it’s worth putting on a schedule rather than doing it only after something goes wrong.

Revoking a key

1. In the WP Engine User Portal, go to AI → Gateways & API → API Keys.
2. Find the key in the list and select Delete (Trash Can).
3. Confirm with Revoke Key.

A revoked key stops authenticating and returns 401 from then on. Revocation cannot be undone — there is no way to reactivate a revoked key, only to create a new one. A user key can be revoked only by the person who created it.

---

Using your key

• Errors — the full response envelope and every status code
• Site and WordPress account connections — the second gate a key does not open
• MCP server — point an AI agent at your sites with a user key
